Heat Resistant Fiberglass Chopped Strand Mat Cloth Polyester Surface Veil Customizable
  • name
  • name

Heat Resistant Fiberglass Chopped Strand Mat Cloth Polyester Surface Veil Customizable

MOQ: 500㎡
Price: $7.04-$36.62（㎡）
Standard Packaging: pallets
Delivery Period: 3-7 work days
Payment Method: T/T
Supply Capacity: 10000㎡/month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
CHINA
Brand Name
WGSC
Certification
ISO9001
Material:
Fiberglass
Alkali Resistance:
Excellent
Heat Resistance:
Good
Moisture Content:
≤0.2%
Acid Resistance:
Excellent
Application:
Hand Lay-up, RTM, Filament Winding
Highlight:

customizable Fiberglass Chopped Strand Mat Cloth

,

customizable frp chopped strand mat

,

Heat Resistant frp chopped strand mat

Product Description
Polyester Surface Veil Engineered For Superior FRP Performance
Product Attributes
Attribute Value
Material Fiberglass
Alkali Resistance Excellent
Heat Resistance Good
Moisture Content ≤0.2%
Acid Resistance Excellent
Application Hand lay-up, RTM, Filament winding
Product Definition
Polyester surface veil is a 100% modified polyester fiber non-woven fabric manufactured through hydro-entanglement technology. Designed as the critical surface enhancement layer for FRP composites, it forms a high-resin-permeability barrier that significantly improves corrosion resistance, surface finish, and weather durability.
Core Advantages
  • Exceptional Chemical Resistance
    • Withstands highly corrosive media like hydrofluoric acid (HF) (superior to glass fibers), ideal for chemical storage tanks and acid digestion chambers
    • Validated by ISO 28721-3 for chemical solvent resistance.
  • Rapid Resin Penetration
    • Fiber-modified surface accelerates resin saturation by 30%, eliminating bubbles, white spots, and fiber print-through for uniform resin-rich surfaces
  • Environmental Durability
    • UV Stability: Blocks photodegradation, extending outdoor service life (e.g., fencing, wind turbine blades)
    • Thermal Endurance: Continuous service at 230°C, peak tolerance at 280°C
  • Operator & Process Safety
    • Soft fibers prevent skin irritation vs. glass fiber splinters; excellent conformability to complex mold geometries
Global Applications
Corrosion Engineering
  • HF Storage Tanks & Wastewater Liners: 50% longer lifespan than traditional materials
  • Chemical Pipeline Liners: Leak-proof performance certified to ISO 28721-3.
Infrastructure & Transportation
  • FRP Railings/Auto Bumpers: Mirror-like finish with impact resistance; complies with EN 45545-2 fire standards
  • Mass Transit Interior Panels: Fiber-free surface ensures human-contact safety.
Renewable Energy
  • Wind Blade Surface Layer: Zero chalking after 3,000 hrs QUV testing (ASTM G154)
  • Desulfurizer Towers: Resists sulfide corrosion (-40°C to 230°C).
High-Precision Manufacturing
  • Aerospace Components: Dimensional stability for tight-tolerance assemblies.
  • Reverse Osmosis Housings: Mashes fabric patterns, enhances hydraulic pressure resistance.
Technical Specifications
Parameter Value Range Test Standard
Weight 20-60 g/m² (customizable up to 120 g/m²) ISO 3374
Width 100-3600 mm (±1% tolerance) Custom specification
Thickness 0.2-0.8 mm ISO 534
Operating Temperature -40°C ~ +230°C (peak 280°C) ISO 3795
Chemical Resistance 98% H₂SO₄, 40% HF, NaOH ≤30% ISO 175
Resin Saturation Time ≤15 sec (30% faster vs. glass veil) In-house method
Tensile Strength ≥35 MPa (longitudinal) ISO 527
UV Stability Zero chalking after 3,000 hrs QUV ASTM G154
Customizable weight, color (white/dyed), and pore size (10 μm/22μm/25μm).
Packaging & Traceability
  • Roll Configuration
    • Core: Ø76mm industrial-grade paper tube.
    • Outer Protection: Full-seal waterproof stretch film + anti-vibration woven bag/custom carton.
  • Palletization
    • Vertical/horizontal placement on wooden pallets (max. 1.5 tons/pallet).
    • Pallet labels include: Product code, specs, batch number, production date, QC ID.
  • Blockchain Traceability
    • QR code per roll linking to real-time QC reports and raw material origins
Storage Protocol
Requirement Specification
Environment 15-35°C, 35%-65% RH; shaded warehouse away from heat/water sources
Stacking Limit ≤3 pallet layers; avoid compression deformation
Post-Opening Handling Re-seal unused rolls; consume within 48 hours
Shelf Life 12 months in original packaging (post-expiry resin penetration test required)
Why Choose Our Polyester Surface Veil?
  • Process Versatility: Compatible with pultrusion, RTM, hand lay-up, vacuum infusion, filament winding
  • Eco-Compliance: REACH SVHC-free, RoHS 3 certified, PFAS-free per EU 2023/707
  • Performance Guarantee: 24-month warranty against manufacturing defects.

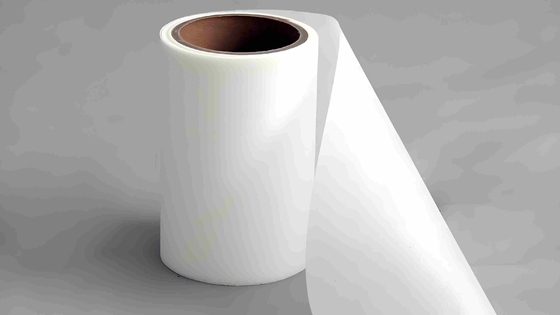

Polyester Surface Veil product sample showing material texture and structure Polyester Surface Veil application example in industrial setting
